OSPF: A Dynamic Routing Protocol

What if your network could automatically find the fastest path between devices, even as connections change? This isn’t a futuristic concept—it’s the power of dynamic routing protocols like OSPF. Unlike static setups, this system adapts in real time, ensuring data flows efficiently across complex topologies.

At its core, OSPF uses a link-state database and the SPF algorithm to calculate optimal routes. Every router in your network shares information about its interfaces and links, building a unified map of the infrastructure. This collaborative approach eliminates guesswork and minimizes delays.

Hierarchical design is key. Networks are divided into areas, with the backbone (Area 0) acting as the central hub. If physical backbone connectivity isn’t possible, virtual links bridge the gap. These features make OSPF ideal for large-scale environments where adaptability and speed matter.

Key Takeaways

• Dynamic routing protocols automatically adjust paths based on real-time network changes.
• Hierarchical area segmentation simplifies management and improves scalability.
• The SPF algorithm calculates the shortest path using shared link-state data.
• Virtual links maintain backbone connectivity in physically divided networks.
• Consistent topology databases ensure all routers agree on the network’s structure.

Introduction to OSPF

Imagine your network devices collaborating like teammates, instantly sharing updates to keep traffic flowing smoothly. This teamwork defines modern dynamic routing protocols. Unlike rigid manual setups, these systems adapt as connections shift, ensuring optimal paths without constant oversight.

What Is This Protocol?

The Open Shortest Path First protocol acts as a traffic coordinator for routers. It uses Hello messages to discover neighboring devices, creating bidirectional communication channels. Once connected, routers exchange link-state details to build a shared topology database.

Benefit	How It Works	Impact
Fast Convergence	Detects changes in under 10 seconds	Minimizes downtime
Scalability	Divides networks into manageable areas	Handles 1,000+ routers
Cost Efficiency	Open standard eliminates license fees	Reduces operational expenses

Why This Matters for Your Infrastructure

Large networks demand flexibility. By segmenting your setup into logical areas, you reduce routing table sizes and speed up calculations. The backbone area (Area 0) ensures all segments communicate efficiently, even if physically separated.

“Configuring OSPF on Cisco routers involves specifying networks and areas. For example:

• router ospf 100
• network 192.168.1.0 0.0.0.255 area 0

This approach prevents bottlenecks and simplifies troubleshooting. You’ll spend less time micromanaging routes and more time optimizing performance.

Fundamentals of OSPF Routing

Picture routers working like cartographers, constantly mapping network connections through shared intelligence. This collaborative mapping forms the backbone of efficient routing decisions.

The Network’s Collective Memory

Every device maintains a link-state database – a real-time atlas of network connections. When interfaces change status, routers flood link-state advertisements (LSAs) to neighbors. This creates synchronized awareness across all devices within an area.

• Router LSAs: Describe a device’s active interfaces
• Network LSAs: Detail multi-access segments like Ethernet
• Summary LSAs: Share routes between areas

Mathematics of Efficient Routing

The SPF algorithm transforms raw topology data into usable paths. Here’s how it works:

1. Identifies the calculating router as the root node
2. Adds all directly connected neighbors
3. Computes path costs using bandwidth-based metrics
4. Selects lowest-cost routes while avoiding loops

“Bandwidth-to-cost conversion formula: 100,000,000 / interface speed (bps). Higher bandwidth equals lower cost.”

This calculation happens independently on each device. By using local copies of the link-state database, routers ensure consistent routing decisions without centralized control.

Configuring OSPF: A Step-by-Step How-To Guide

Ready to transform your network into a self-adjusting system? Proper setup ensures devices communicate route changes efficiently. Follow these steps to activate dynamic path selection across your infrastructure.

Accessing and Setting Up Your Router

Connect to your router via SSH or console cable. Enter privileged mode with enable, then global configuration using configure terminal. Start the routing process with:

router ospf 55

The number 55 represents your process ID. This value must match across devices sharing routes.

Defining Networks and Interfaces for OSPF

Specify which connections participate in route sharing. Use wildcard masks to identify interface ranges:

network 10.12.0.0 0.0.255.255 area 0

This command adds all interfaces with IPs starting with 10.12.x.x to the backbone area. Repeat for other subnets, assigning non-backbone areas as needed.

Command	Purpose	Example
show ip ospf neighbor	Verify active connections	Lists router IDs and interface statuses
passive-interface	Block unwanted updates	Prevents hello packets on secure links
auto-cost reference-bandwidth	Adjust path calculations	Matches modern high-speed connections

Avoid mismatched area assignments – devices in Area 0 can’t exchange routes with Area 1 without proper summarization. Always test configurations with show ip route ospf to confirm successful route propagation.

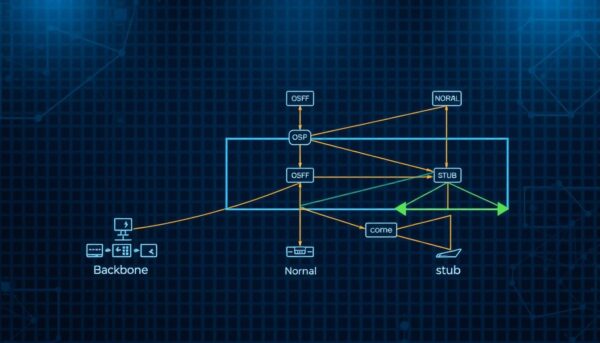

Understanding OSPF Areas and Their Types

Imagine dividing a city into districts to simplify traffic management. OSPF areas work similarly, segmenting your network to reduce routing complexity. By creating logical zones, you shrink topology databases and speed up calculations. This approach prevents every device from storing unnecessary route details.

Backbone, Stub, and Totally Stub Areas

The backbone (Area 0) acts as your network’s central highway. All other areas must connect here to exchange routes. Stub areas block external route advertisements, using default paths instead. Totally stub zones take this further by hiding inter-area routes too.

Area Type	Blocks	Uses Default Route?
Stub	Type 5 LSAs	Yes
Totally Stub	Type 3/4/5 LSAs	Yes
Backbone	None	No

“Configure stub areas with:

• area 2 stub (standard stub)
• area 2 stub no-summary (totally stub)

Defining Not-So-Stubby Areas (NSSAs)

NSSAs allow limited external route sharing while maintaining efficiency. They convert Type 7 LSAs into standard Type 5 entries at area borders. Use these when you need to advertise specific external routes without flooding the entire network.

• Advantage: Balances control and scalability
• Limitation: Requires careful LSA management
• Configuration: area 5 nssa

Choosing the right area type depends on your network size and traffic patterns. Smaller segments mean faster updates and fewer resource demands.

OSPF Troubleshooting Techniques

When network paths break, every second counts. Become a routing detective with these essential troubleshooting methods. Start by confirming device relationships and validating your configuration data.

Verifying Neighbor Relationships

Use show ip ospf neighbor to check adjacency status. Healthy connections show “FULL” state. If stuck in “INIT” or “TWO-WAY,” inspect these:

• Matching area IDs on both routers
• Consistent hello/dead timers (check with show ip ospf interface)
• Identical MTU settings across links

Auditing Routing Data

Examine the link-state database using show ip ospf database. Missing LSAs indicate synchronization failures. Compare these elements across devices:

Database Component	Healthy Sign	Problem Indicator
Router LSAs	All interfaces listed	Missing segments
Network LSAs	Multi-access links visible	Partial entries
Summary LSAs	Inter-area routes present	Area border mismatches

For persistent connectivity issues, test basic IP reachability first. Use ping and traceroute commands to isolate layer 3 problems before focusing on protocol-specific settings.

“Always clear OSPF processes cautiously: clear ip ospf process resets neighbors but may cause temporary outages.”

Monitor convergence times during network changes. Delayed updates often stem from overloaded routers or bandwidth-starved links. Adjust SPF calculation throttling if needed.

Optimizing and Securing Your OSPF Network

Balancing security and speed keeps your infrastructure resilient. Let’s explore how to lock down routing updates while optimizing traffic flow. These strategies prevent unauthorized changes and ensure data takes the most efficient paths.

Best Practices for Authentication

Unsecured routing updates risk network hijacking. Use authentication to verify legitimate devices. Configure MD5 hashing or clear-text passwords on interfaces sharing updates:

interface GigabitEthernet0/1
 ip ospf authentication message-digest
 ip ospf message-digest-key 1 md5 YourSecureKey

Authentication Type	Security Level	Use Case
Clear-Text	Low	Lab environments
MD5	High	Production networks

Fine-Tuning Performance Metrics

Adjust link costs to prioritize high-speed connections. The default formula (100Mbps reference bandwidth) often undervalues modern links. Update calculations globally with:

router ospf 1
 auto-cost reference-bandwidth 10000

“Cost = Reference Bandwidth / Link Speed. A 10Gbps link with updated settings gets cost 1 instead of 10.”

Command	Effect	When to Use
ip ospf cost	Manual path preference	Critical data paths
ip ospf priority	Controls DR/BDR elections	Stable backbone segments

Test changes during maintenance windows. Monitor routing tables afterward to confirm desired paths appear.

OSPF in Large Networks: Scaling and Performance Considerations

Managing a sprawling network resembles directing rush-hour traffic in a metropolis. Without smart controls, updates and calculations overwhelm devices. The protocol’s scalability depends on balancing speed with resource limits.

Managing LSA Flooding and Database Size

Link-state advertisements multiply as networks grow. Each change triggers updates across areas, eating bandwidth and CPU cycles. Keep databases lean with these methods:

• Limit areas to 50 devices for stable operations
• Use stub zones to block unnecessary external routes
• Summarize routes at area borders

Technique	Purpose	Impact
Route Summarization	Combine multiple subnets	Reduces LSA count by 70%+
Stub Configuration	Block Type 5 LSAs	Cuts database size by half
Timer Adjustments	Slow LSA refresh rates	Lowers CPU spikes

Strategies for Rapid Convergence

Fast recovery keeps data flowing during outages. Optimize these settings:

interface GigabitEthernet0/2
ip ospf hello-interval 2
ip ospf dead-interval 6

Shorter hello timers detect failures faster. Pair this with incremental SPF calculations to update only changed routes. Avoid overloading devices by limiting neighbors to 60 per router.

Conclusion

Dynamic routing transforms networks into self-healing systems that adapt as devices shift and connections evolve. By leveraging a shared link-state database, routers collaboratively map your infrastructure, using the SPF algorithm to pinpoint the fastest paths. This approach eliminates manual guesswork while maintaining consistent performance across expanding environments.

Effective implementation starts with smart design. Dividing your network into areas reduces complexity, while proper authentication and cost adjustments keep traffic secure and efficient. Regular checks of neighbor relationships and topology databases prevent routing gaps before they impact operations.

For those managing large-scale systems, the protocol’s hierarchical structure proves invaluable. Techniques like route summarization and stub configurations streamline updates, ensuring smooth scaling. Want to dive deeper? Explore our guide to dynamic routing protocols for advanced strategies and real-world examples.

Now’s the time to apply these principles. Start with small configurations, validate with diagnostic commands, and gradually expand your optimized network. The right setup today means fewer headaches tomorrow.
